EuroCold Forza Series: Optimum Performance and Maximum Efficiency
Take your freezing experience to the next level with the EuroCold Forza Deep Freezer! This special product series stands out with its advanced features and energy efficiency, offering ideal solutions for your business. The Forza series provides advanced heat transfer thanks to its aluminum pipe winding. This feature ensures that your products are stored in perfect conditions by providing homogeneous cooling to every corner of your freezer. In addition, it minimizes the need for maintenance with its dust-free condenser, thus providing reliable performance with less interruptions and longer life.
Equipments
- Barled Vertical Lighting (6500K)
- 3L1 Class
- Interior Color: RAL 7043 - Exterior Color: RAL 7043
- Heated Self Closing Triple Glass Doors
- Thermostatic Expansion Valve
- Dixell XR06 CX Digital Thermostad (At Top with Upstand)
- 2xNTC Probe
- 5 Rows Wire Shelves (550 mm) + Base
- Upper Piping
- Shelf and Base Price Tag Holder (40 mm)
- Wire Basket
- Powder Coated Galvanized Wet Floor, Suction Grid and Base Trays
- R449A / R404A /R448 Refrigerant
- EC Fan Motor on Evaporator
- 50/60 Hertz Electical Components
- Solenoid Valve
Technical Dimensions
| INTERNAL DIMENSIONS (MM) | EXTERNAL DIMENSIONS (MM) | SIDE PANEL (MM) | OPERATING TEMPERATURE | REFRIGERANT |
|---|---|---|---|---|
| 1560 | 1660 | 50 | (-18 ~ -22°C) | R449A / R404A / R448 |
| 2340 | 2440 | 50 | (-18 ~ -22°C) | R449A / R404A / R448 |
| 3125 | 3225 | 50 | (-18 ~ -22°C) | R449A / R404A / R448 |
| 3900 | 4000 | 50 | (-18 ~ -22°C) | R449A / R404A / R448 |
Product Dimensions
| INTERNAL DIMENSIONS (MM) | DOOR PIECES | END PANEL THICKNESS (MM) | HEIGHT | DEPTH |
|---|---|---|---|---|
| 1560 | 2 | 50 | 2070 | 75-90 |
| 2340 | 3 | 50 | 2070 | 75-90 |
| 3125 | 4 | 50 | 2070 | 75-90 |
| 3900 | 5 | 50 | 2070 | 75-90 |

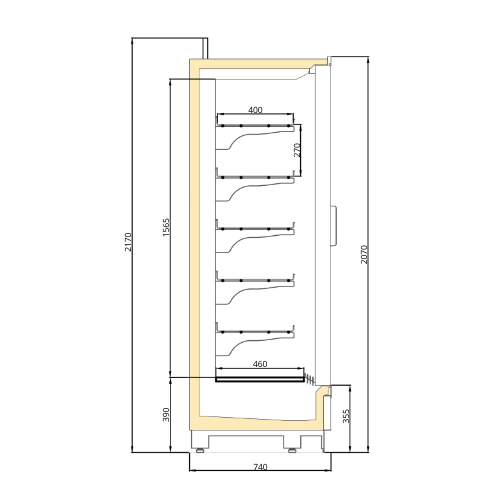

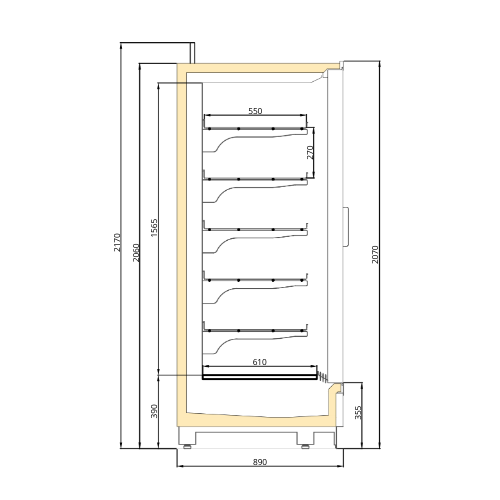

Technical Drawing
