Peak of Performance with Optimized Internal Airflow
Our signature collection of multideck chiller cabinets is engineered with an advanced design that optimizes internal airflow, enhancing efficiency without compromising performance. These units are ideal for users seeking powerful cooling solutions that also help minimize energy consumption and reduce electricity costs.
Equipments
- Carel Easy digital controller
- 1mm shelf thickness
- All shelves comes with Perspex risers
- Base + 6 shelves with epos strips
- Solenoid Valve (To be installed after the coil inside the cabinet)
- Thermostatic Expansion Valve
- Upper Piping
- Shelf and Base Price Tag Holder
- Stainless Steel Base
- Climate Class 3M1 /M3
- Drainage Kit
- Thermostatic Expansion Valve
- EBM Electronics Fans
- Osram LED lights
- Increased Product capacity with our low base
- Support bar under shelves
- LED Lighting under shelves
- Manuel Night Blind
- CE Fire certified cables
- 50/60 Hertz Electical Components
- Honeycomb air outlet
- Natural Defrost
- Electrostatic powder coating
- Multiplexing Kit
- Mirror Side Panels ( 35mm)
- Interior Color: RAL 7043 - Exterior Color: RAL 7043
- R449A / R404A /R448 Refrigerant
Technical Dimensions
| INTERNAL DIMENSIONS (MM) | EXTERNAL DIMENSIONS (MM) | SIDE PANEL (MM) | OPERATING TEMPERATURE | REFRIGERANT |
|---|---|---|---|---|
| 1250 | 1330 | 40 | 3M1 (-1 ~ +5°C) | R449A / R404A / R448 |
| 1870 | 1950 | 40 | 3M1 (-1 ~ +5°C) | R449A / R404A / R448 |
| 2500 | 2580 | 40 | 3M1 (-1 ~ +5°C) | R449A / R404A / R448 |
| 2820 | 2900 | 40 | 3M1 (-1 ~ +5°C) | R449A / R404A / R448 |
| 3750 | 3830 | 40 | 3M1 (-1 ~ +5°C) | R449A / R404A / R448 |
Product Dimensions
| INTERNAL DIMENSIONS (MM) | END PANEL THICKNESS (MM) | HEIGHT | DEPTH |
|---|---|---|---|
| 1250 | 40 | 2200 | 75-90-107 |
| 1870 | 40 | 2200 | 75-90-107 |
| 2500 | 40 | 2200 | 75-90-107 |
| 2820 | 40 | 2200 | 75-90-107 |
| 3750 | 40 | 2200 | 75-90-107 |

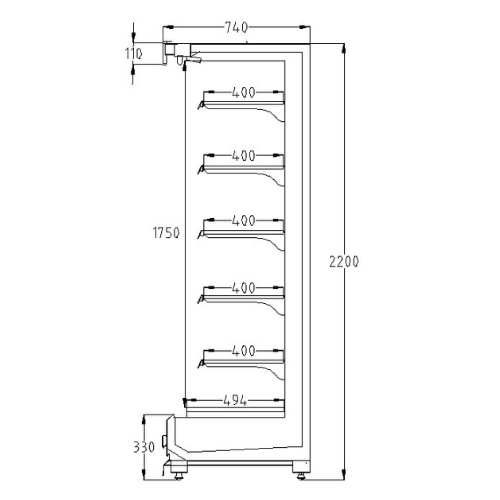

Technical Drawing
